Load Pin

A load pin is a complete system of load cells configured as internally strain gauged pins in stainless steel for highly accurate load indication and load limitation. Load pins are designed and configured to exact specifications as direct replacements for load bearing pins in lifting equipment.

Load Pin

Specifications

Capacity

0.1T to 1000T

Accuracy

< 0.1%

Proof load

150 %

Ultimate breaking load

500 %

Bridge resistance

350/700/1000 ohms

Excitation in DC

5 to 10V

Output

1.0 to 1.5 mV/V

Non-linearity

±1 % typical

Non-repeatability

±0.04 % optimum

Operating temp.

-20° to 70° C

Temp. coefficient on zero

<0.02 % capacity/°C

Temp. coefficient on span

<0.02 % capacity/°C

IP class

IP68

Material

Stainless steel

The load pin wizard

The load pin configurator helps you when you need a custom load pin.



I know what I need!

Perfect. Then you just fill in you data and submit. Then we’ll return with prices, ETA and ask for a final confirmation on your order.



I’m not sure what type of load pin I need.

Perfect. Fill in the data you have and check you which other data is essential when producing a load pin. Submit what you have and we’ll return within a very short time. We are specialists and will help you get the right load pin for your project.

The load pin wizard

Designed specifically to customers requirements as direct replacement for shackles and load bearing pins in lifting equipment

Design

Design

Designed and configured to exact specifications

Output

Output

Multiple choices of output signal

Acessories

Acessories

Wide assortment of amplifier, display and remote control options

Options

Options

SIL2
ATEX, zone 1 and 2
Subsea

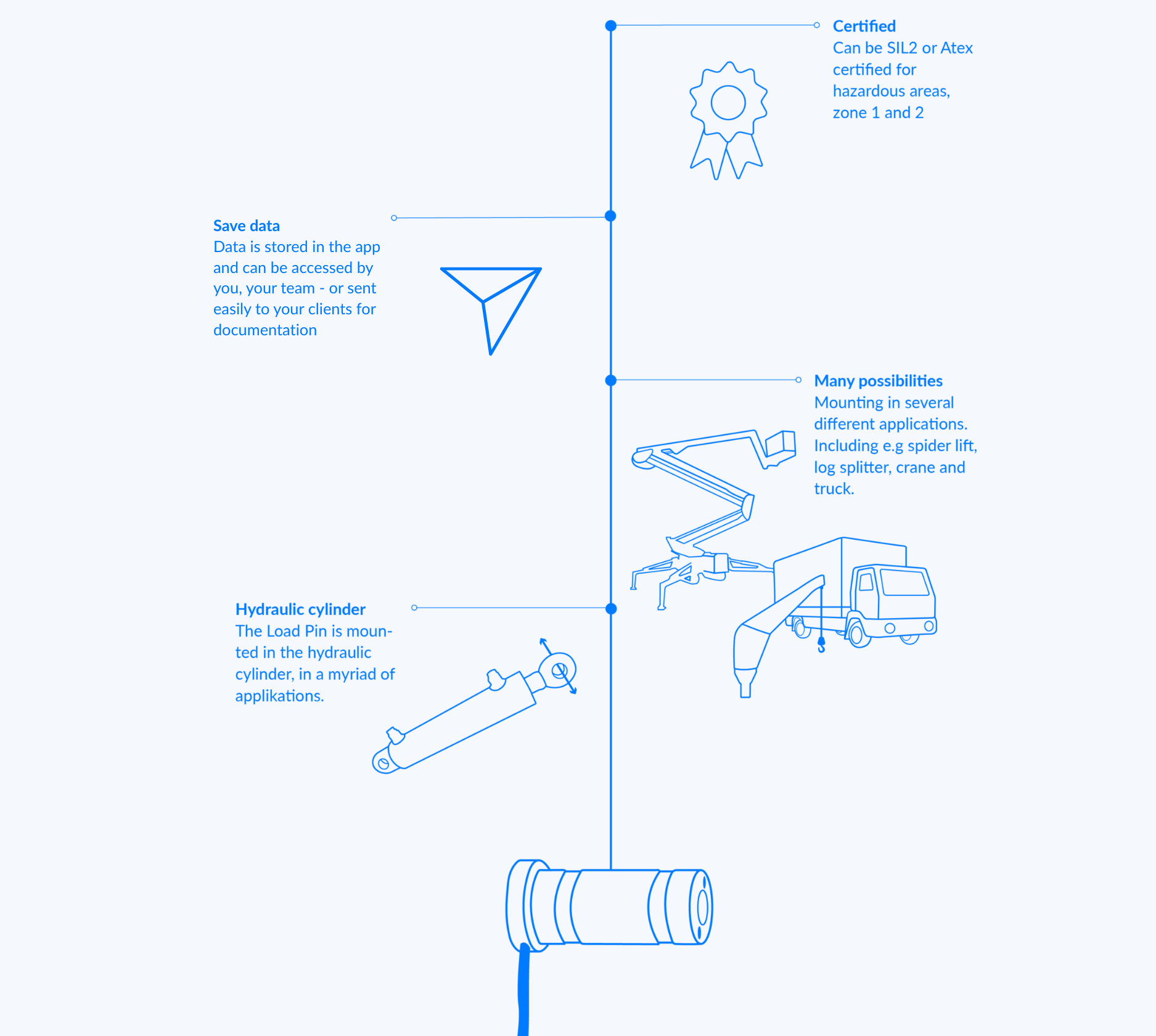

The many possibilities with use of a Load pin

When you choose to use a Load pin in one of your solutions –
You’re saying yes to a product with many advantages that can be used in many different applications. As described in the following infographic:

The many possibilities with use of a Load pin
